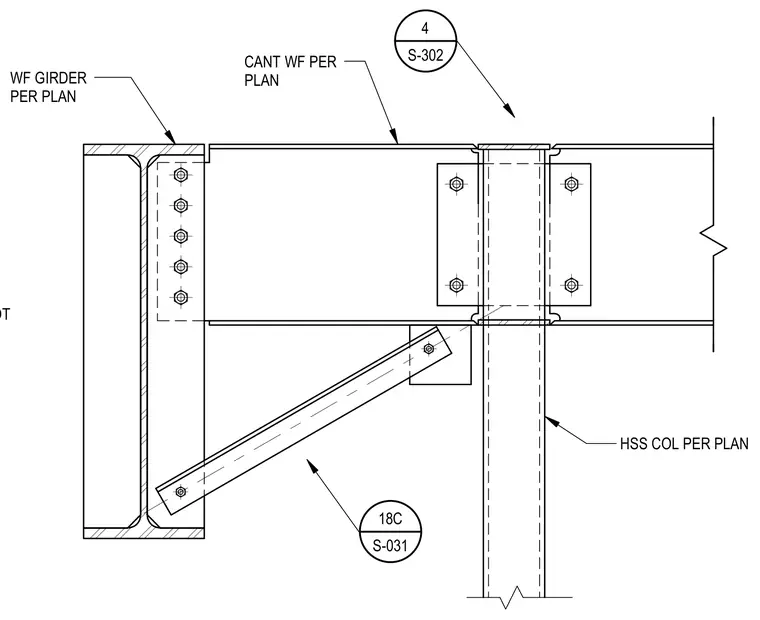

A wide-flange girder frames per plan with a bolted connection, supporting a cantilevered wide-flange beam that extends to a hollow structural section column sized per plan. A diagonal brace connects the wide-flange girder to the column assembly with bolted gusset plates. Additional top and bottom plates reinforce the connection at the hollow structural section column.
HSS COL PER PLAN WF GIRDER PER PLAN CANT WF PER PLAN 4 S-302 18 S-031 18C 3" TOP & 3" BOT
