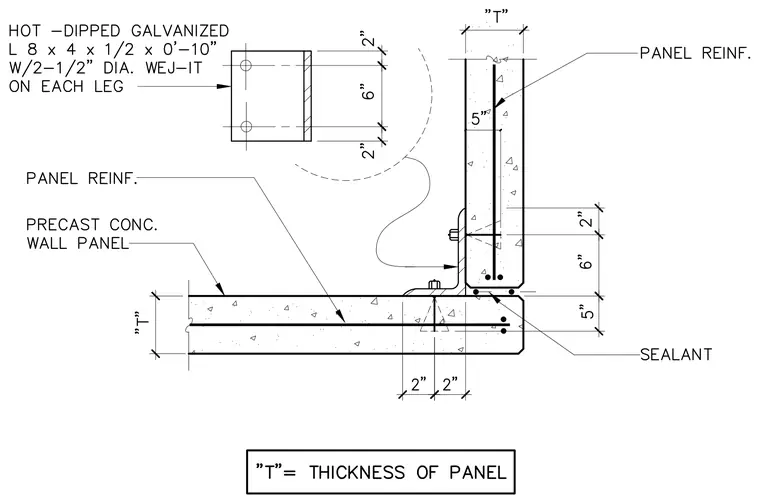

Precast concrete wall panels connect at the corner using a hot-dipped galvanized L 8 x 4 x 1/2 x 0'-10" angle fastened with two 1/2-inch diameter Wej-It anchors on each leg. Panel reinforcement runs continuously through the concrete panels, which have a thickness designated by dimension T. Joint sealant is applied at the exterior corner between the abutting panels.
