A structural steel beam bears on a top bearing plate welded to a steel column. The bearing plate matches the beam flange thickness with a one-half-inch minimum thickness and fastens with four three-quarter-inch-diameter A325-N bolts. Where no intersecting beam occurs, stiffener plates measuring one-quarter inch by depth divided by two minimum are provided on each side and welded with quarter-inch fillet welds. The shear plate extends to the bottom flange on each side for intersecting beams. Edge distances comply with AISC minimum requirements with standard typical spacing.

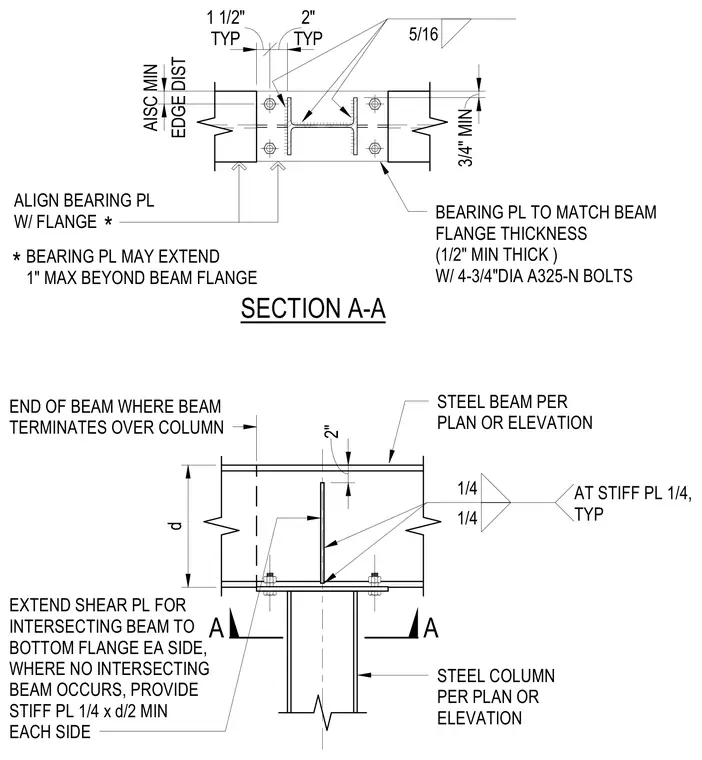

A A EXTEND SHEAR PL FOR INTERSECTING BEAM TO BOTTOM FLANGE EA SIDE, WHERE NO INTERSECTING BEAM OCCURS, PROVIDE STIFF PL 1/4 x d/2 MIN EACH SIDE STEEL COLUMN PER PLAN OR ELEVATION END OF BEAM WHERE BEAM TERMINATES OVER COLUMN STEEL BEAM PER PLAN OR ELEVATION BEARING PL TO MATCH BEAM FLANGE THICKNESS (1/2" MIN THICK ) W/ 4-3/4"DIA A325-N BOLTS ALIGN BEARING PL W/ FLANGE BEARING PL MAY EXTEND 1" MAX BEYOND BEAM FLANGE * * SECTION A-A 1/4 1/4 AT STIFF PL 1/4, TYP 5/16 d 2" TYP 1 1/2" TYP 2" EDGE DIST AISC MIN 3/4" MIN
