Structural · S-93VDY

Typical 'K' 5 Inch Bearing Ends Joist and Deck

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Walls Facades / Cladding Decks Arches Connections / Plates

Connections

Bolted Connection Deck Attachment

About this detail

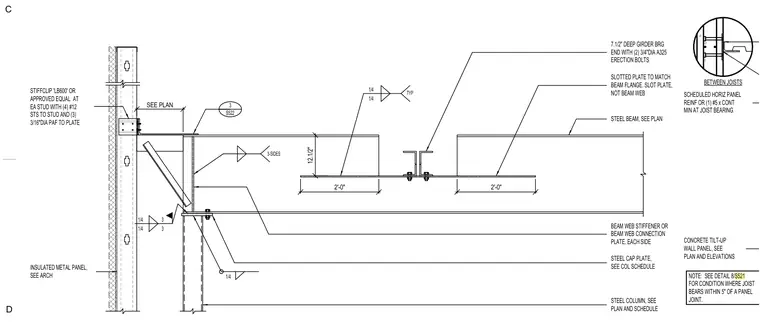

The steel joist bears on a steel cap plate atop a steel column, with a beam web stiffener or connection plate on each side. A slotted plate matches the beam flange and utilizes two three-quarter-inch-diameter A325 erection bolts, with the plate slotted rather than the beam web. A seven-and-a-half-inch deep girder bearing end connects nearby, while horizontal panel reinforcement or a continuous number five rebar runs at the joist bearing location. Stiffclip 'LB600' clips attach at each stud using four number twelve self-tapping screws and three three-sixteenth-inch diameter powder-actuated fasteners to the plate. Insulated metal panels span the exterior face of the concrete tilt-up wall.
