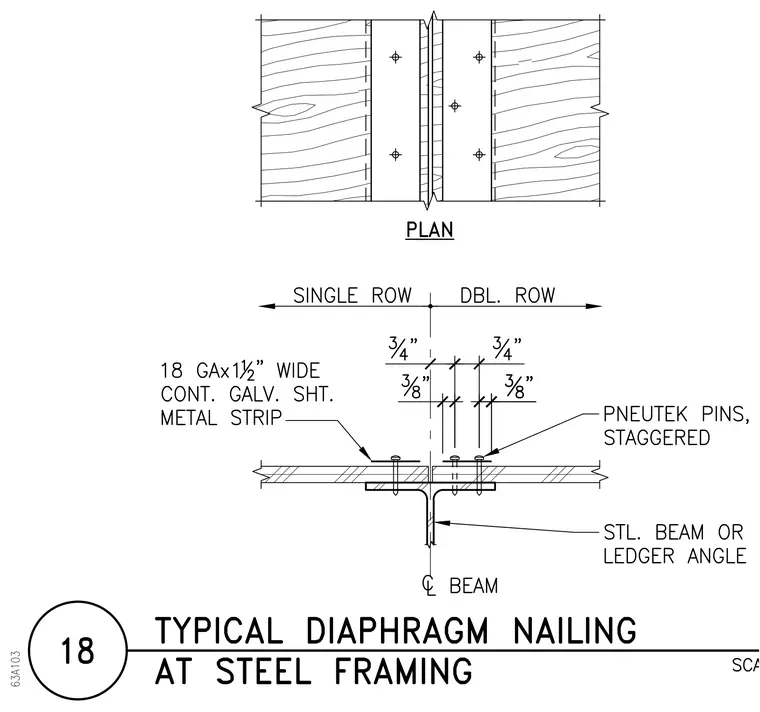

Typical diaphragm nailing at a structural steel beam or ledger angle supporting wood panels. The assembly features an 18 gauge by 1-1/2 inch wide continuous galvanized sheet metal strip fastened with staggered Pneutek pins. Dimensioning indicates single row and double row nailing zones with 3/8 inch and 3/4 inch spacing relative to the beam centerline.
