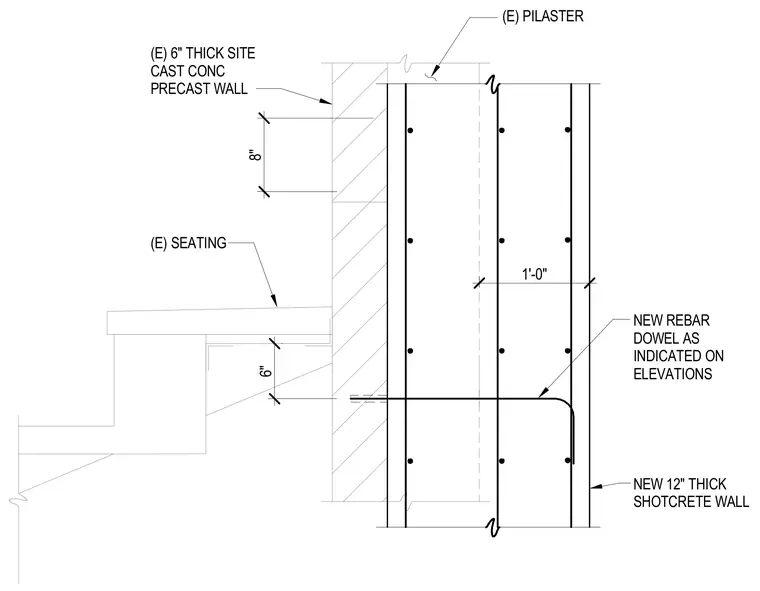

A new twelve-inch thick shotcrete wall ties into an existing six-inch thick site-cast concrete precast wall and existing pilaster using new reinforcing bar dowels spaced as indicated on the elevations. The assembly integrates with an existing concrete seating element bearing against the existing wall.
8" 1'-0" 6" (E) PILASTER (E) 6" THICK SITE CAST CONC PRECAST WALL (E) SEATING NEW 12" THICK SHOTCRETE WALL NEW REBAR DOWEL AS INDICATED ON ELEVATIONS
