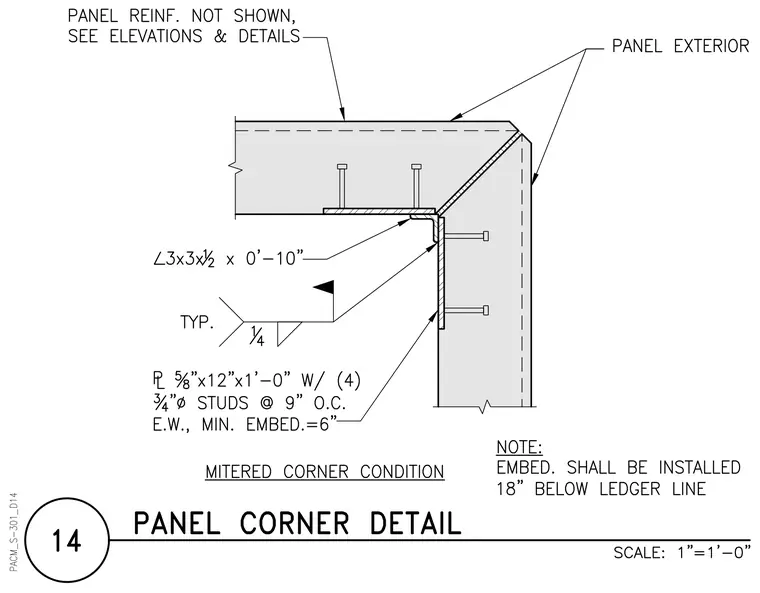

Precast concrete wall panels meet at a mitered exterior corner tied together with structural steel embedments. An L3x3x1/2 angle with a length of zero feet ten inches bridges the inside corner. A plate measuring five-eighths inch by twelve inches by one foot zero inches is anchored into the panel with four three-quarter-inch diameter studs at nine inches on center each way with a minimum embedment of six inches. A one-quarter-inch fillet weld secures the angle to the embedded plate. Panel reinforcement is omitted for clarity and requires coordination with elevation and detail sheets.
