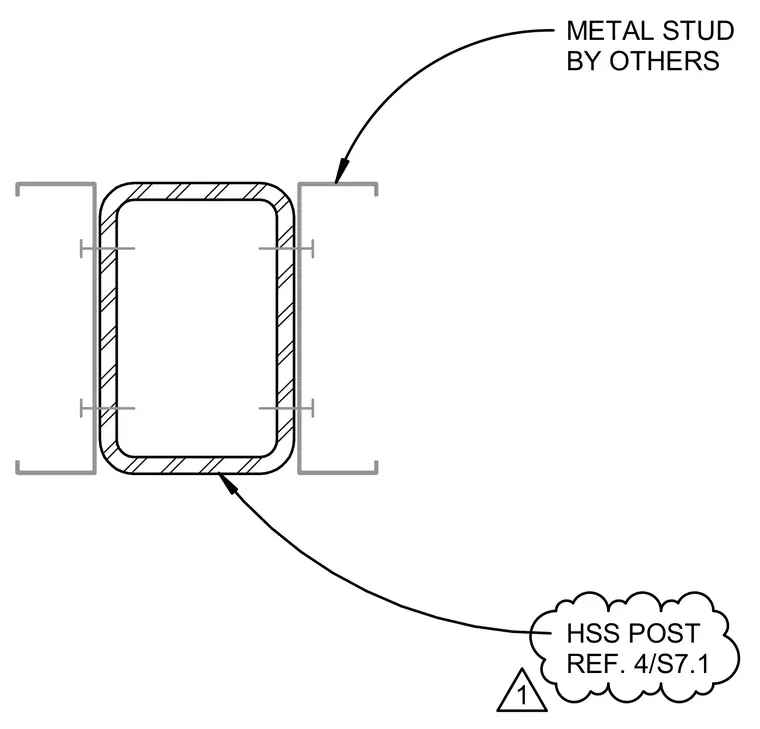

A hollow structural section post is positioned between cold-formed metal studs supplied by others. Fasteners connect the web of the metal studs directly to the side walls of the structural steel tube.
METAL STUD BY OTHERS HSS POST REF. 4/S7.1 1
