A hollow structural section beam frames into the web of a wide flange beam using a quarter-inch plate welded with three-sixteenths fillet welds to each side of the HSS. Two three-quarter-inch diameter through bolts pass through horizontal short slotted holes in the connecting plates. The assembly accommodates horizontal movement while providing secure structural transfer between the members. A one-inch minimum clearance is maintained per elevation requirements.

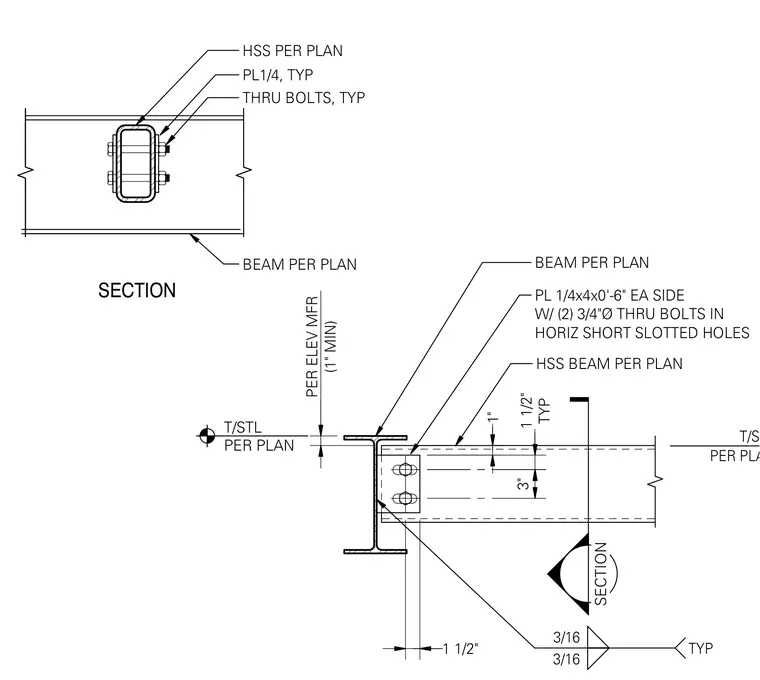

T/STL PER PLAN BEAM PER PLAN SECTION 3" 1 1/2" TYP 1 1/2" 1" BEAM PER PLAN T/STL PER PLAN (1" MIN) PER ELEV MFR 3/16 3/16 TYP PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN HSS BEAM PER PLAN SECTION PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES
