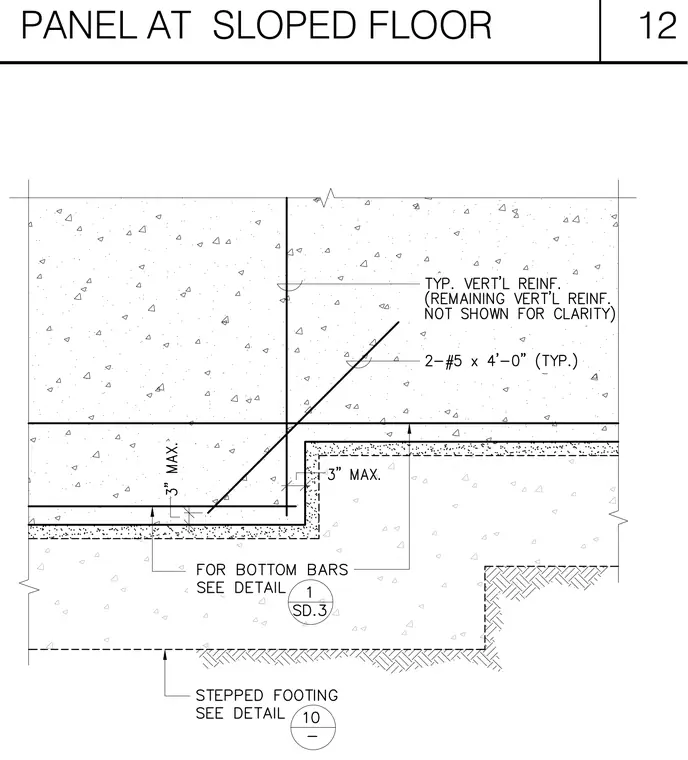

A stepped concrete wall panel transitions along a sloped floor with a maximum three-inch vertical offset and a maximum three-inch horizontal setback. Typical vertical reinforcement is supplemented by two number five bars measuring four feet zero inches in length. Bottom bars and stepped footings reference separate structural details for complete installation requirements.
