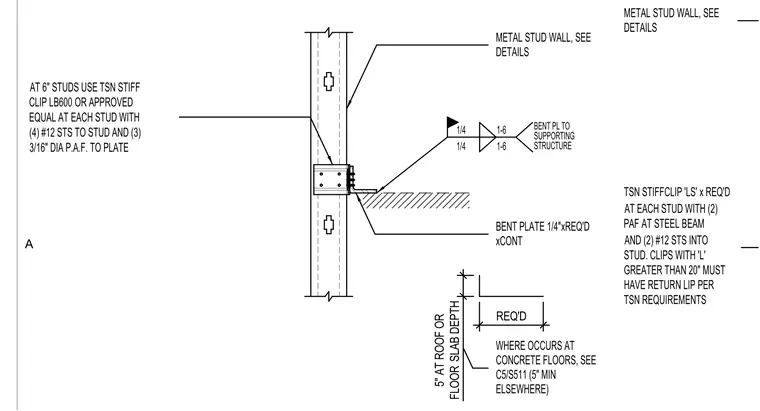

The cold-formed metal stud wall connects to the supporting concrete slab or steel beam using a continuous one-quarter-inch bent plate attached to the supporting structure. At each stud, a TSN StiffClip LB600 or approved equal fastens with four number twelve self-tapping screws into the stud and three three-sixteenths-inch diameter powder-actuated fasteners into the plate. Alternatively, a TSN StiffClip 'LS' fastens with two powder-actuated fasteners at the steel beam and two number twelve self-tapping screws into the stud. Clips with a length greater than twenty inches require a return lip per TSN requirements. Concrete floor conditions maintain a five-inch minimum depth or follow project details.
BENT PLATE 1/4"xREQ'D xCONT METAL STUD WALL, SEE WHERE OCCURS AT CONCRETE FLOORS, SEE C5/S511 (5" MIN ELSEWHERE) 1/4 SUPPORTING 1/4 1-6 1-6 BENT PL TO STRUCTURE DETAILS AT 6" STUDS USE TSN STIFF CLIP LB600 OR APPROVED EQUAL AT EACH STUD WITH (4) #12 STS TO STUD AND (3) 3/16" DIA P.A.F. TO PLATE 5" AT ROOF OR FLOOR SLAB DEPTH REQ'D METAL STUD WALL, SEE DETAILS TSN STIFFCLIP 'LS' x REQ'D AT EACH STUD WITH (2) PAF AT STEEL BEAM AND (2) #12 STS INTO STUD. CLIPS WITH 'L' GREATER THAN 20" MUST HAVE RETURN LIP PER TSN REQUIREMENTS A
