Head anchor bolts are embedded into concrete masonry units and pilasters with a minimum clearance of one-half inch for grout. Additional horizontal reinforcement is set in bond units and tied to the anchor bolts, including a number four bar twelve inches long at each anchor bolt where bolts are on a slope. A tie bar connects to the anchor bolt, and one inch minimum grout is placed all around bolts in masonry with forms as required. Anchor bolts project between one-quarter inch and one inch beyond the nut, with excess threads removed where the nut is countersunk flush.

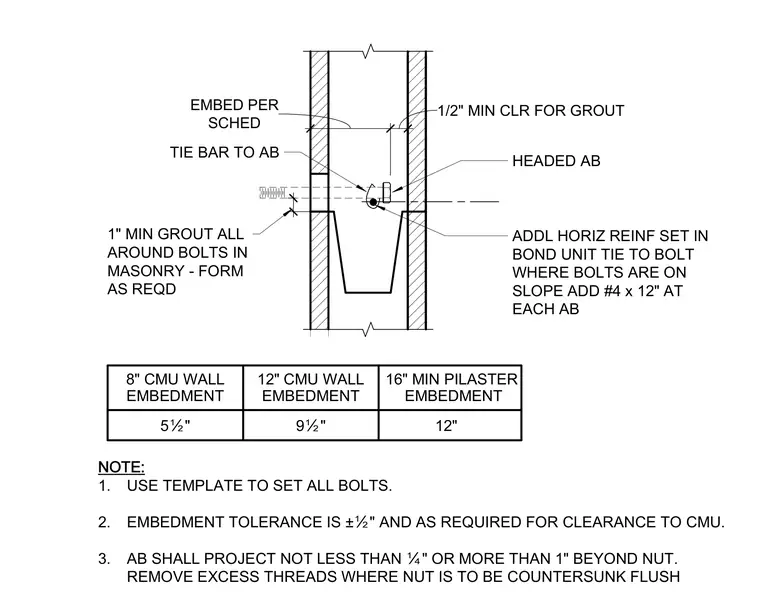

NOTE: 1. USE TEMPLATE TO SET ALL BOLTS. 2. EMBEDMENT TOLERANCE IS ±Ï" AND AS REQUIRED FOR CLEARANCE TO CMU. 3. AB SHALL PROJECT NOT LESS THAN Ë" OR MORE THAN 1" BEYOND NUT. REMOVE EXCESS THREADS WHERE NUT IS TO BE COUNTERSUNK FLUSH 1" MIN GROUT ALL AROUND BOLTS IN MASONRY - FORM AS REQD EMBEDMENT 8" CMU WALL EMBEDMENT 16" MIN PILASTER 9Ï" 5Ï" 12" 12" CMU WALL EMBEDMENT TIE BAR TO AB ADDL HORIZ REINF SET IN BOND UNIT TIE TO BOLT WHERE BOLTS ARE ON SLOPE ADD #4 x 12" AT EACH AB HEADED AB EMBED PER SCHED 1/2" MIN CLR FOR GROUT
