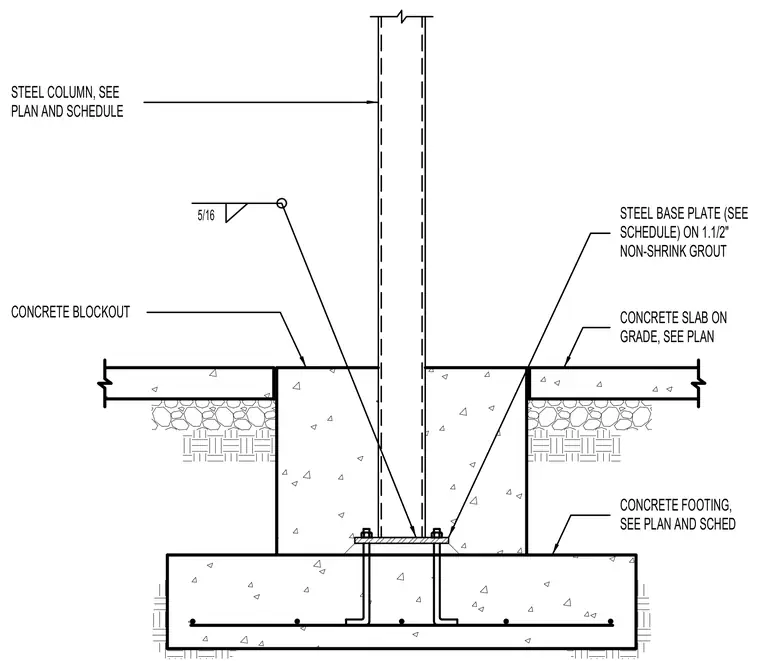

The steel column connects to a steel base plate sized per plan and schedule. The base plate rests on a one-and-a-half-inch layer of non-shrink grout above a concrete footing. A concrete blockout surrounds the base of the column within the concrete slab on grade.
5/16 CONCRETE SLAB ON GRADE, SEE PLAN STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT CONCRETE FOOTING, SEE PLAN AND SCHED STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT
