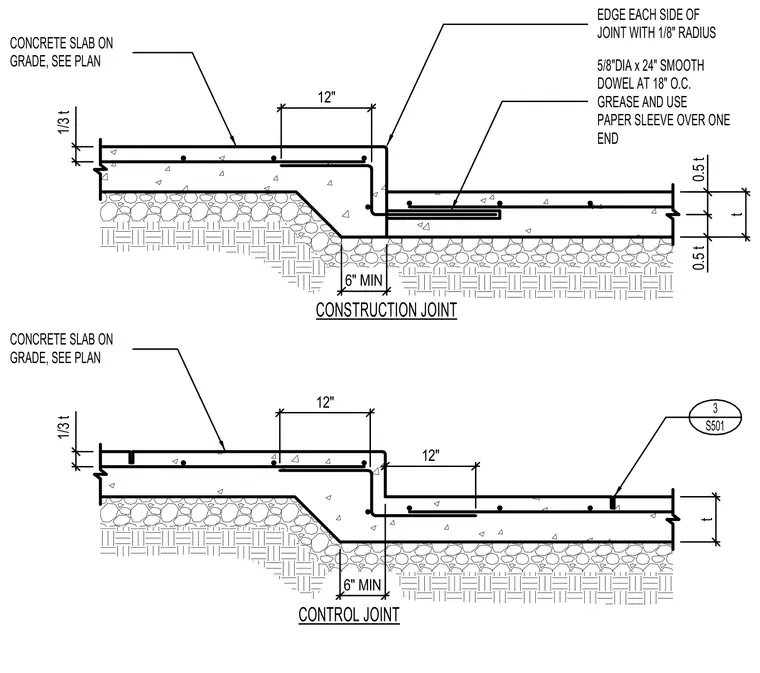

A concrete slab on grade transitions through a depression with a 6-inch minimum thickness zone and stepped edges. The construction joint features a five-eighths-inch diameter by twenty-four-inch smooth dowel spaced at eighteen inches on center, greased and fitted with a paper sleeve over one end. Both joint edges are finished with a one-eighth-inch radius. A control joint is detailed with a saw-cut depth equal to one-third of the slab thickness.
CONSTRUCTION JOINT EDGE EACH SIDE OF JOINT WITH 1/8" RADIUS CONCRETE SLAB ON GRADE, SEE PLAN 5/8"DIA x 24" SMOOTH DOWEL AT 18" O.C. GREASE AND USE PAPER SLEEVE OVER ONE END CONTROL JOINT CONCRETE SLAB ON GRADE, SEE PLAN 3 S501 6" MIN t 1/3 t 12" 0.5 t 0.5 t t 6" MIN 1/3 t 12" 12"
