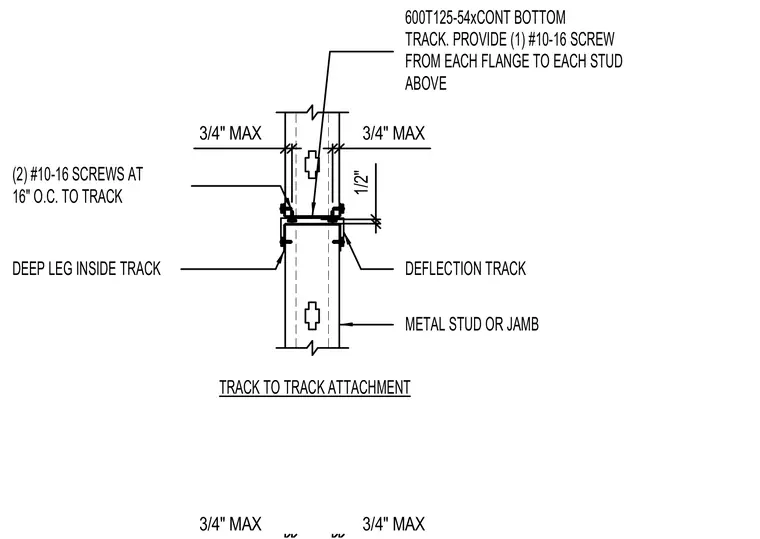

A vertical slip joint connection between cold-formed metal framing tracks accommodates deflection. A continuous bottom track rests above a deflection track with a designated half-inch clearance gap. Two number 10-16 self-drilling screws secure the track-to-track attachment at sixteen inches on center. Additionally, one number 10-16 screw connects each flange of the stud to the track above, positioned within maximum three-quarter-inch limits from the end of the slot. A deep leg inside track provides lateral stability while allowing vertical movement.
TRACK TO TRACK ATTACHMENT (2) #10-16 SCREWS AT 16" O.C. TO TRACK DEEP LEG INSIDE TRACK DEFLECTION TRACK METAL STUD OR JAMB 600T125-54xCONT BOTTOM TRACK. PROVIDE (1) #10-16 SCREW FROM EACH FLANGE TO EACH STUD ABOVE 1/2" 3/4" MAX 3/4" MAX 3/4" MAX 3/4" MAX
