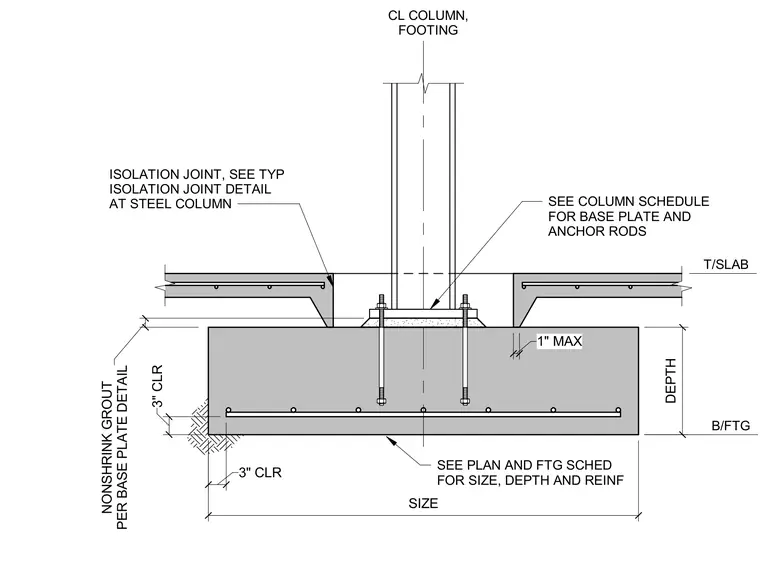

A structural steel column rests on a base plate secured by anchor rods embedded into a concrete footing. Nonshrink grout is placed beneath the base plate per the base plate detail, while footing size, depth, and reinforcement are sized per plan and footing schedules. An isolation joint surrounds the steel column at the concrete slab interface, maintaining a one-inch maximum clearance.
B/FTG T/SLAB CL COLUMN, FOOTING ISOLATION JOINT, SEE TYP ISOLATION JOINT DETAIL AT STEEL COLUMN DEPTH SEE COLUMN SCHEDULE FOR BASE PLATE AND ANCHOR RODS 3" CLR SIZE 3" CLR 1" MAX SEE PLAN AND FTG SCHED FOR SIZE, DEPTH AND REINF NONSHRINK GROUT PER BASE PLATE DETAIL
