A structural steel beam connects to a concrete tilt-up wall panel using a three-quarter-inch embed plate whose depth matches the beam depth with a fourteen-inch minimum. The embed plate features eight three-quarter-inch diameter by six-inch Nelson studs for beams up to fourteen inches deep, or twelve studs for deeper beams, bent as required to maintain clear cover. A shear plate sized per the connection schedule bolts to the beam web. At panel joint conditions where the beam web falls within six inches of the panel edge, a one-half-inch tie plate matches the embed plate height less one-half inch.

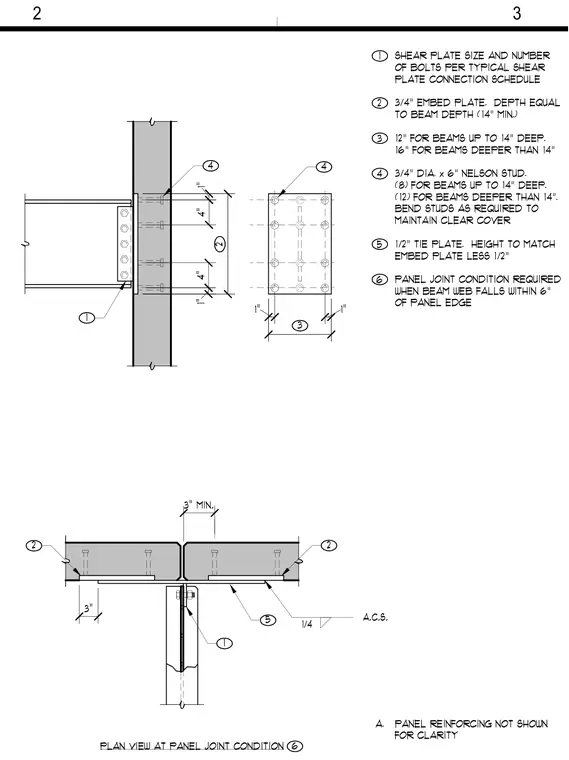

1 SHEAR PLATE SIZE AND NUMBER OF BOLTS PER TYPICAL SHEAR PLATE CONNECTION SCHEDULE 2 3/4" EMBED PLATE. DEPTH EQUAL TO BEAM DEPTH (14" MIN.) 3 12" FOR BEAMS UP TO 14" DEEP. 16" FOR BEAMS DEEPER THAN 14" 4 3/4" DIA. x 6" NELSON STUD. (8) FOR BEAMS UP TO 14" DEEP. (12) FOR BEAMS DEEPER THAN 14". BEND STUDS AS REQUIRED TO MAINTAIN CLEAR COVER 5 1/2" TIE PLATE. HEIGHT TO MATCH EMBED PLATE LESS 1/2" 6 PANEL JOINT CONDITION REQUIRED WHEN BEAM WEB FALLS WITHIN 6" OF PANEL EDGE A. PANEL REINFORCING NOT SHOWN FOR CLARITY 4 4 3 2 1 1" 4" 4" 1" 1" 1" PLAN VIEW AT PANEL JOINT CONDITION 6 1/4 A.C.S. 2 2 5 1 3" MIN. 3" 2 3
