Structural · S-92FT5

Typical Utility thru Side of Grade Beam

Elements

Connections

About this detail

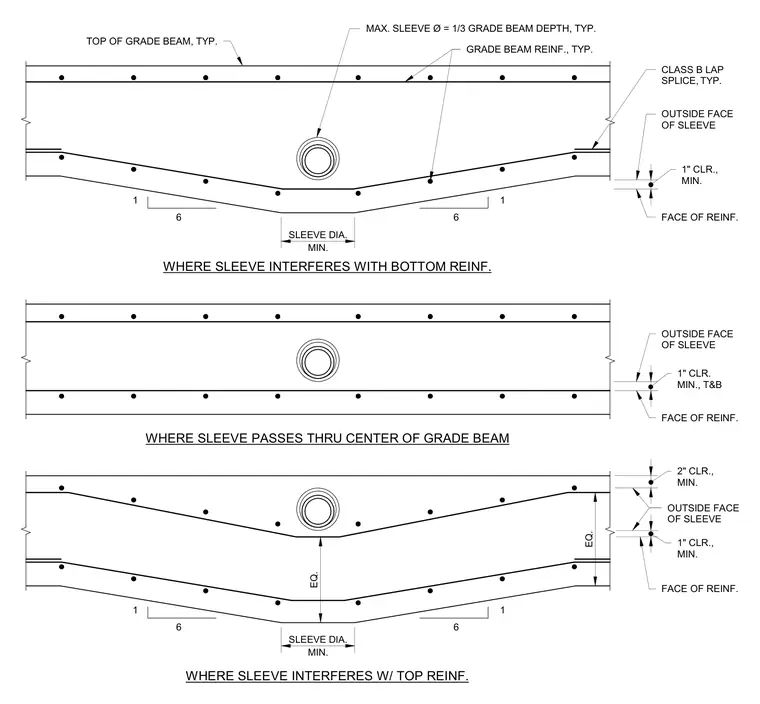

Utility sleeves penetrating a concrete grade beam maintain specified clearances and rebar spacing depending on their vertical location. When a sleeve interferes with bottom reinforcement, the bottom bars jog around the sleeve with a one-in-six slope and include a class B lap splice. Where a sleeve passes through the center of the grade beam, top and bottom reinforcement remain straight with one-inch minimum clear distances. When a sleeve interferes with top reinforcement, the top bars jog around the sleeve similarly while maintaining two inches of minimum top clearance. The maximum sleeve diameter is limited to one-third of the grade beam depth.
