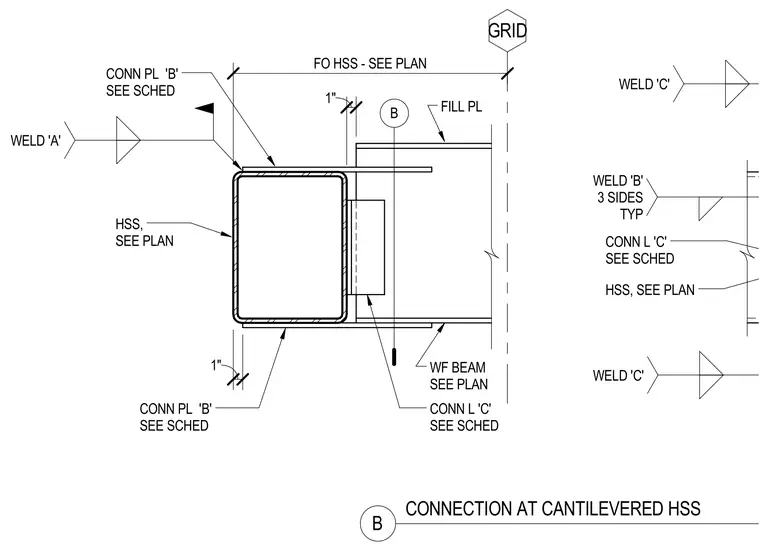

A structural connection occurs at a cantilevered hollow structural section and a wide flange beam, sized according to the structural plan. Connection plates designated as connection plate B and connection angles designated as connection plate C are detailed with specified weld sizes and filler plates. A one-inch clearance is maintained at the top and bottom connection plates relative to the grid line. Welds A, B, and C are indicated with specific configurations including a three-sided weld typical for the hollow structural section connection.
B CONNECTION AT CANTILEVERED HSS GRID B FO HSS - SEE PLAN WELD 'B' 3 SIDES TYP HSS, SEE PLAN CONN PL 'B' SEE SCHED FILL PL CONN L 'C' SEE SCHED HSS, SEE PLAN WF BEAM SEE PLAN 1" 1" WELD 'A' CONN PL 'B' SEE SCHED CONN L 'C' SEE SCHED WELD 'C' WELD 'C'
