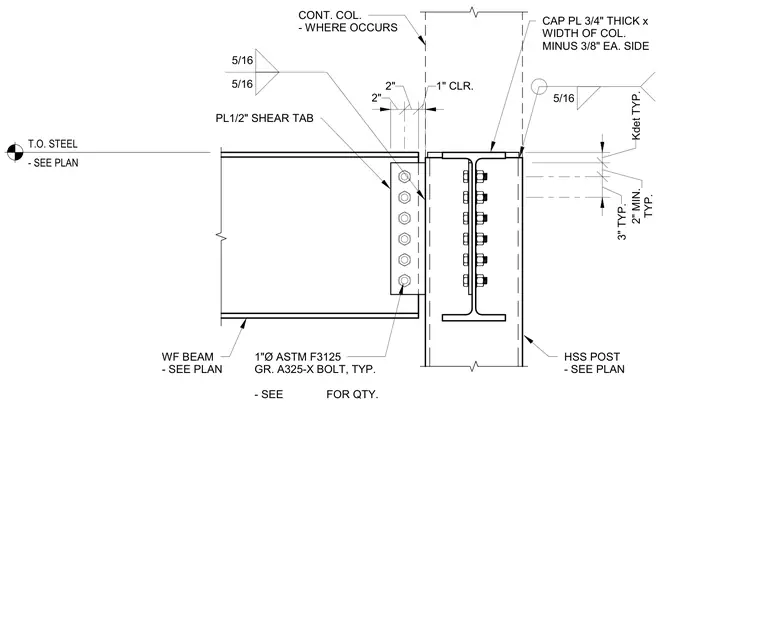

A wide-flange beam frames into an HSS post using a one-half-inch thick shear tab welded to the web with five-sixteenth-inch fillet welds on both sides. The beam web is fastened to the shear tab using one-inch diameter ASTM F3125 Grade A325-X bolts with quantities sized per plan. A three-quarter-inch thick cap plate, sized to the width of the column minus three-eighths of an inch on each side, caps the HSS post and is secured with five-sixteenth-inch continuous fillet welds.
T.O. STEEL - SEE PLAN WF BEAM - SEE PLAN 2" 2" 1" CLR. 1"Ø ASTM F3125 GR. A325-X BOLT, TYP. - SEE FOR QTY. 5/16 CAP PL 3/4" THICK x WIDTH OF COL. MINUS 3/8" EA. SIDE Kdet TYP. TYP. 2" MIN. 3" TYP. HSS POST - SEE PLAN PL1/2" SHEAR TAB 5/16 5/16 CONT. COL. - WHERE OCCURS
