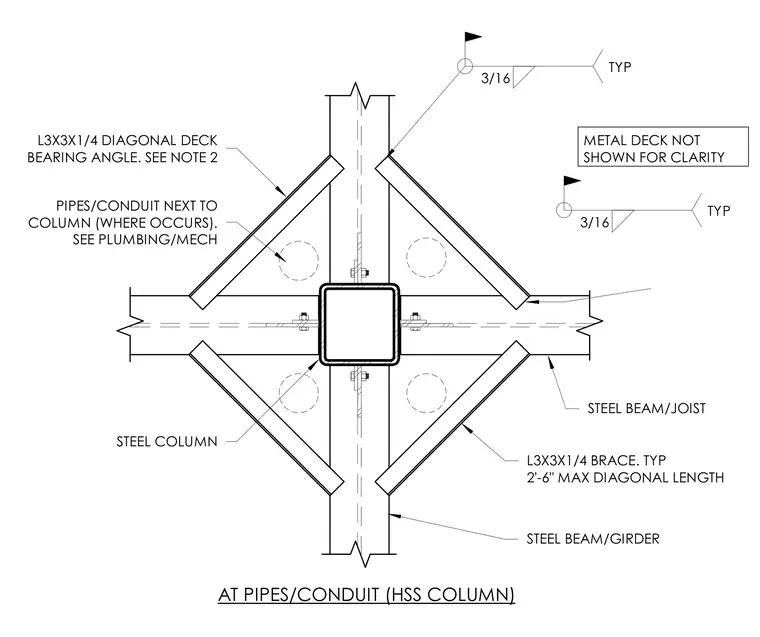

An HSS steel column connects to orthogonal steel beams and girders with bolted connections at each face. Four diagonal L3x3x1/4 angles act as braces and deck bearing angles, featuring a 2'-6" maximum diagonal length and attached with typical 3/16 fillet welds. Clearances for pipes and conduits are coordinated next to the column per plumbing and mechanical drawings, with metal deck omitted for clarity.
3/16 TYP 3/16 TYP METAL DECK NOT SHOWN FOR CLARITY L3X3X1/4 BRACE. TYP 2'-6" MAX DIAGONAL LENGTH STEEL BEAM/GIRDER STEEL BEAM/JOIST L3X3X1/4 DIAGONAL DECK BEARING ANGLE. SEE NOTE 2 STEEL COLUMN PIPES/CONDUIT NEXT TO COLUMN (WHERE OCCURS). SEE PLUMBING/MECH AT PIPES/CONDUIT (HSS COLUMN)
