Structural · S-8ZZEG

Sloping Metal Deck Bearing Connection to Masonry Wall

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Walls Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

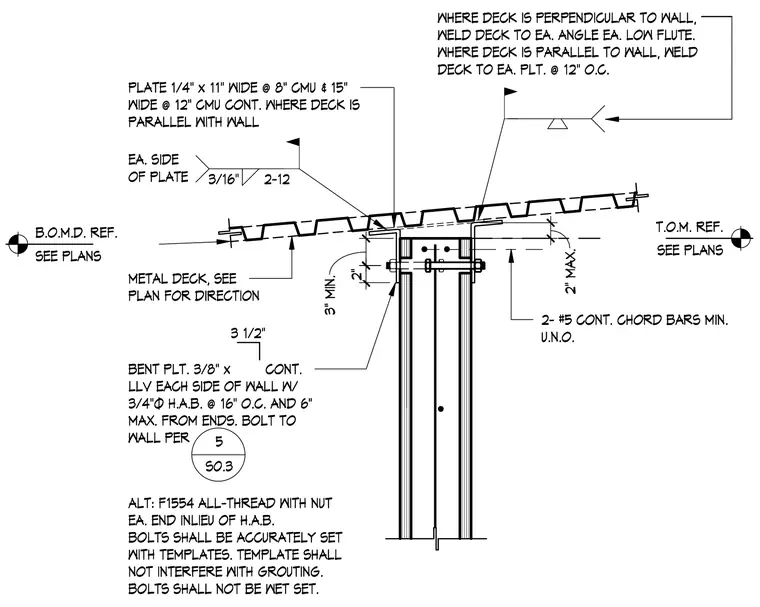

A continuous 3/8-inch by continuous bent plate and a continuous 1/4-inch plate (11 inches wide for 8-inch masonry or 15 inches wide for 12-inch masonry) anchor the sloping metal deck to the masonry wall. The assembly is tied together using 3/4-inch diameter heavy anchor bolts at 16 inches on center, positioned a maximum of 6 inches from ends, or alternatively ASTM F1554 all-thread rods with nuts at each end. Two continuous number 5 chord bars provide horizontal reinforcement below the top of the wall. Where the metal deck runs perpendicular to the wall, it is welded to each angle at each low flute. Where the deck runs parallel to the wall, it is welded to each plate at 12 inches on center with a 3/16-inch fillet weld on two sides of the plate.
