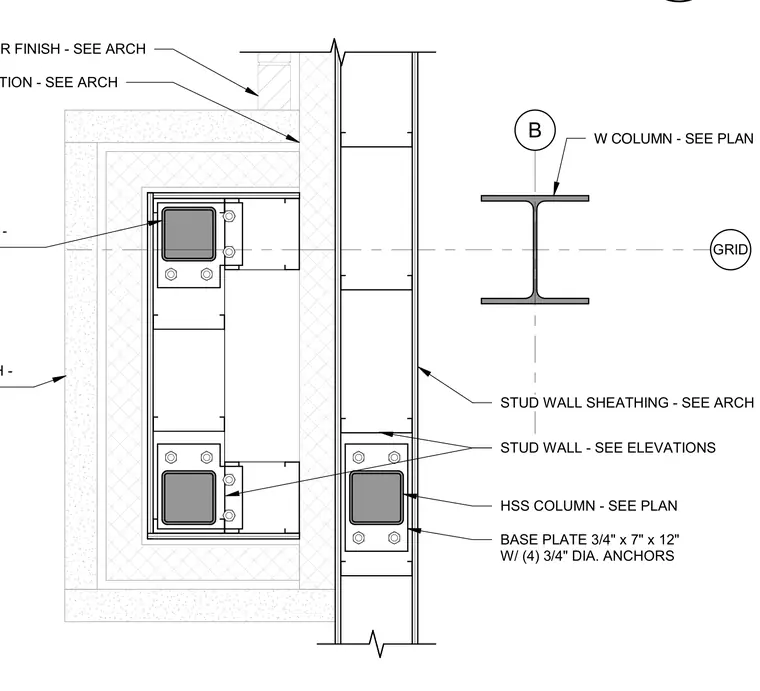

Base plate anchorage for hollow structural section columns positioned adjacent to a wide-flange column and a stud wall assembly. Each hollow structural section column is secured with a three-quarter-inch by seven-inch by twelve-inch steel base plate, anchored by four three-quarter-inch diameter anchor bolts. The assembly is integrated with stud wall framing and sheathing, with specific finishes and wall configurations referenced to architectural drawings. The wide-flange column is located on a primary grid line, with its orientation and size determined by the structural plan.
