Structural · S-8ZS8D

HSS Steel Stair Framing and Landing Connection Detail

Materials

Concrete Steel

Elements

Columns Stairs Arches Roof / Floor Openings

Connections

HSS Connection Welded Connection

About this detail

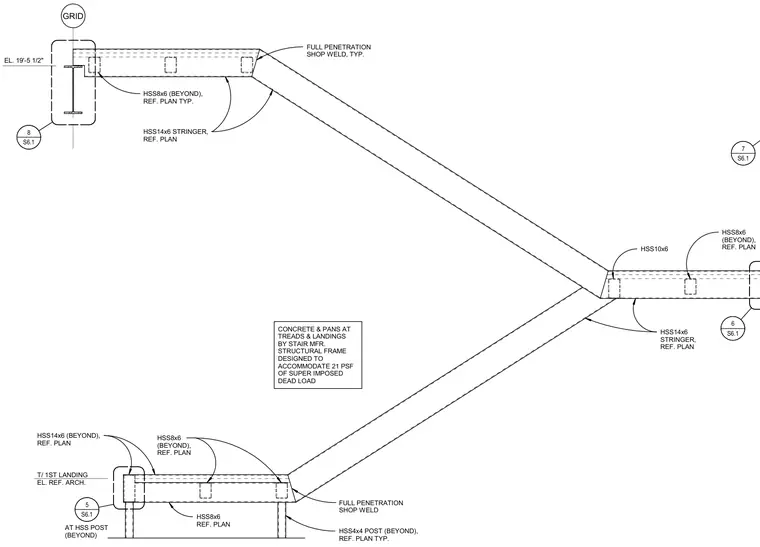

A steel stair assembly features HSS14x6 stringers connected to HSS8x6 and HSS10x6 members, supported by HSS4x4 posts at the first landing. Full penetration shop welds are specified at the stringer and landing frame junctions, as indicated by typical callouts. The structural frame is designed to accommodate twenty-one pounds per square foot of superimposed dead load, with concrete and pans at treads and landings provided by the stair manufacturer. Grid alignments and reference elevations establish the vertical and horizontal placement relative to the architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
