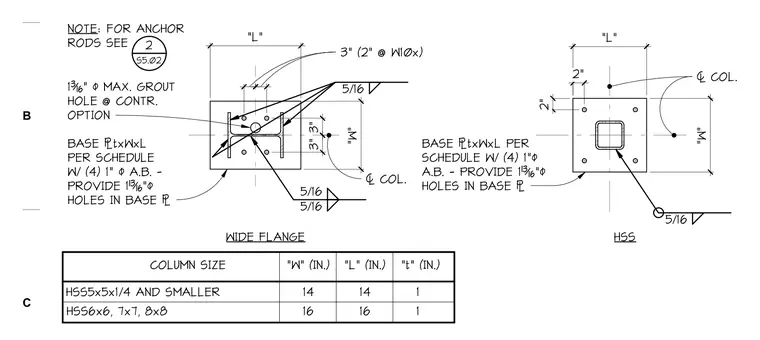

Base plate configurations for both wide flange and hollow structural section columns anchored to a concrete foundation. The wide flange detail shows a steel column welded to a base plate with five-sixteenths inch fillet welds and four one-inch diameter anchor bolts located through thirteen-sixteenths inch holes, including an optional one-and-three-sixteenths inch max grout hole. The hollow structural section detail provides a square base plate welded around the perimeter with five-sixteenths inch fillet welds and four one-inch diameter anchor bolts. An accompanying table lists standard plate widths, lengths, and thicknesses corresponding to various hollow structural section column sizes. Anchor rod requirements reference sheet S5.02.
3" (2" @ W10x) WIDE FLANGE 5/16 5/16 COLUMN SIZE "W" (IN.) HSS5x5x1/4 AND SMALLER 14 HSS6x6, 7x7, 8x8 16 "t" (IN.) 1 1 2" 2" "L" "W" 3" 3" 2 COL. NOTE: FOR ANCHOR RODS SEE 2 S5.02 1=" MAX. GROUT HOLE @ CONTR. OPTION TEXT BASE txWxL PER SCHEDULE W/ (4) 1" A.B. - PROVIDE 1>" HOLES IN BASE "L" (IN.) 14 16 5/16 "L" "W" 2 COL. BASE txWxL PER SCHEDULE W/ (4) 1" A.B. - PROVIDE 1>" HOLES IN BASE 2" 2" HSS 5/16 B C
