Steel grating panels are fastened to structural support steel using Lindapter grate-fast clips or an approved equal. One fastener assembly is required at each corner of the panel as a minimum, with fasteners placed at all intermediate supports. Two fastener assemblies are required at each support location to ensure secure attachment of the grating.

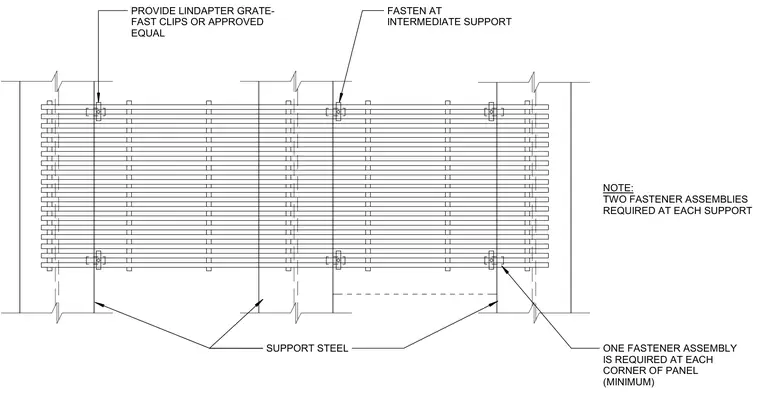

PROVIDE LINDAPTER GRATE- FAST CLIPS OR APPROVED EQUAL FASTEN AT INTERMEDIATE SUPPORT SUPPORT STEEL ONE FASTENER ASSEMBLY IS REQUIRED AT EACH CORNER OF PANEL (MINIMUM) NOTE: TWO FASTENER ASSEMBLIES REQUIRED AT EACH SUPPORT
