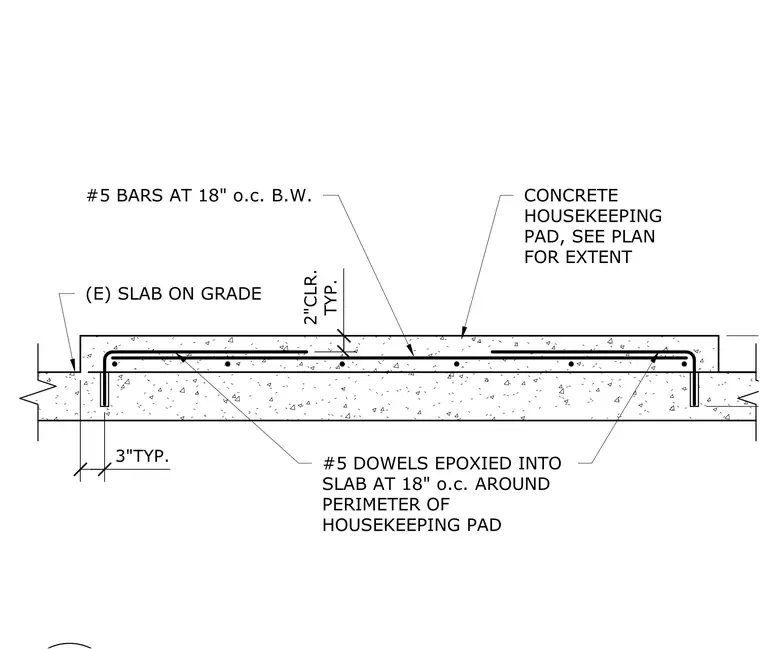

This assembly details a concrete housekeeping pad cast over an existing slab-on-grade. The pad is reinforced with number five bars spaced at eighteen inches on center each way, maintained with two inches of concrete cover. Perimeter connection is achieved using number five dowels epoxied into the existing slab at eighteen inches on center around the pad perimeter. A three-inch typical edge clearance is maintained from the pad edge to the dowel location.
Text on the drawing
#5 DOWELS EPOXIED INTO SLAB AT 18" o.c. AROUND PERIMETER OF HOUSEKEEPING PAD (E) SLAB ON GRADE CONCRETE HOUSEKEEPING PAD, SEE PLAN FOR EXTENT #5 BARS AT 18" o.c. B.W. 3"TYP. TYP. 2"CLR. SEE M.E.P. DRAWINGS 4" DRILL/EPOXY #5 CONT. HORIZ. AT 12" o.c. #5 AT 16"o.c. CENTERED IN STEMWALL AT 18" o.c. WITH HOOKED END, ALTERNATE HOOK FIN. GRADE, SEE CIVIL NOTE: ALL REINF. IS CONT. THROUGH SPREAD FOOTINGS & PEDESTALS (2) CONT. #5 AT TOP CONT. FOOTING (SEE PLAN) TYP. SLAB REINFORCING, SEE PLAN #4 DOWELS WITH STD. HOOK AT 18" o.c. 10" LAP PER 2/S5.1 ~ 4" 6"
