Wide-flange beams connect to wide-flange and box-shaped hollow structural section columns with complete joint penetration welds across the beam flanges. Horizontal plates welded to the top and bottom of the beam flanges are sized with a thickness equal to the beam flange plus one-eighth inch, with a minimum width of two inches. The connection details reference rigid frame drawings for specific plate thicknesses and weld requirements.

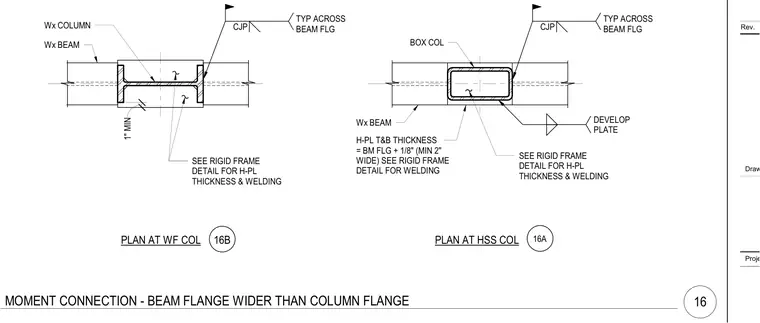

Wx COLUMN Wx BEAM SEE RIGID FRAME DETAIL FOR H-PL THICKNESS & WELDING H-PL T&B THICKNESS = BM FLG + 1/8" (MIN 2" WIDE) SEE RIGID FRAME DETAIL FOR WELDING BOX COL Wx BEAM TYP ACROSS BEAM FLG SEE RIGID FRAME DETAIL FOR H-PL THICKNESS & WELDING DEVELOP PLATE CJP TYP ACROSS BEAM FLG CJP 1" MIN PLAN AT HSS COL PLAN AT WF COL 16B 16A Project No.: Drawing Title: Rev. MOMENT CONNECTION - BEAM FLANGE WIDER THAN COLUMN FLANGE 16
