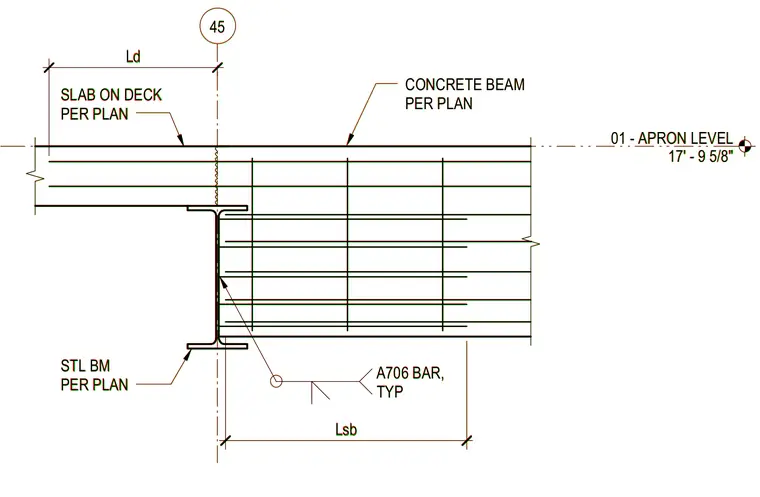

A concrete beam is cast framing into a steel beam with a slab on deck bearing adjacent to it, located at apron level seventeen feet nine and five-eighths inches. Reinforcing includes typical ASTM A706 reinforcing bars running through the assembly with specified development lengths Ld and lap splice lengths Lsb per plan.
01 - APRON LEVEL 17' - 9 5/8" 45 Lsb Ld STL BM PER PLAN CONCRETE BEAM PER PLAN SLAB ON DECK PER PLAN A706 BAR, TYP 01 - APRON LEVEL 17' - 9 5/8" 45 Lsb Ld STL BM PER PLAN CONCRETE BEAM PER PLAN SLAB ON DECK PER PLAN A706 BAR, TYP
