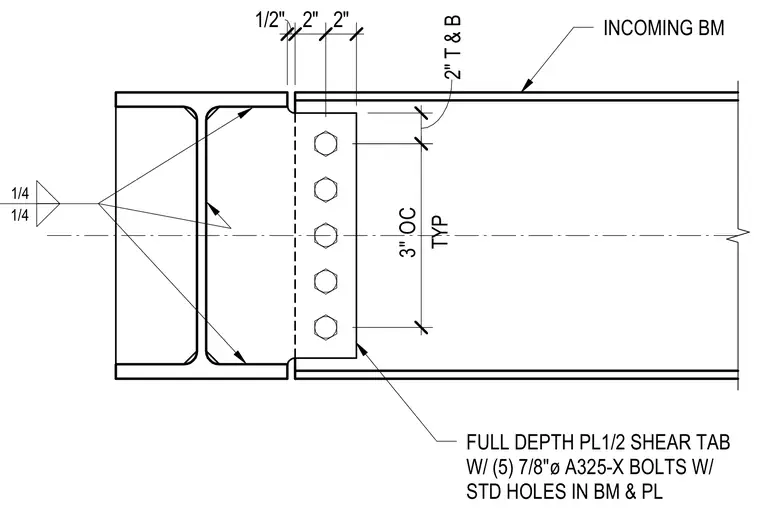

An incoming steel beam connects to a supporting member using a full-depth one-half-inch shear plate welded to the support with quarter-inch fillet welds. The beam web secures to the shear tab with five seven-eighth-inch diameter A325-X bolts in standard holes, spaced at three inches on center with two inches top and bottom clearances. A one-half-inch gap is maintained between the beam end and the supporting flange.
1/2" 2" 2" TYP 3" OC INCOMING BM FULL DEPTH PL1/2 SHEAR TAB W/ (5) 7/8"ø A325-X BOLTS W/ STD HOLES IN BM & PL 2" T & B 1/4 1/4
