Metal Chain Wire Hanger At

Materials

Elements

About this detail

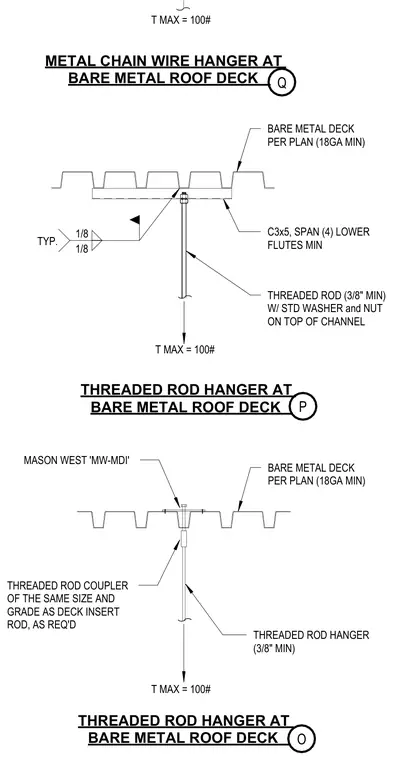

The assembly suspends a three-eighths-inch minimum threaded rod from an eighteen-gauge minimum bare metal roof deck. In the first configuration, a C3x5 channel spans four lower flutes minimum, welded to the deck with one-eighth-inch fillet welds typical, while the threaded rod secures through the channel top with a standard washer and nut. In the second configuration, a Mason West MW-MDI deck insert anchors the threaded rod, which may connect to a threaded rod coupler of matching size and grade. Both hanger details support a maximum tension load of one hundred pounds.
