A hollow structural section beam frames into a hollow structural section column using a slotted HSS beam connection and gusset plate. A three-eighths-inch cap plate sits at the top of the column, welded to the HSS column with a three-sixteenths-inch fillet weld. The gusset plate thickness is specified as twice the thickness of the HSS beam wall thickness, with a one-half-inch minimum. The weld length for the beam connection must be larger than the width of the HSS beam, utilizing one-quarter-inch typical fillet welds. Slots in the HSS beam are limited to a maximum depth of one and one-half inches beyond the gusset and must terminate in a drilled hole.

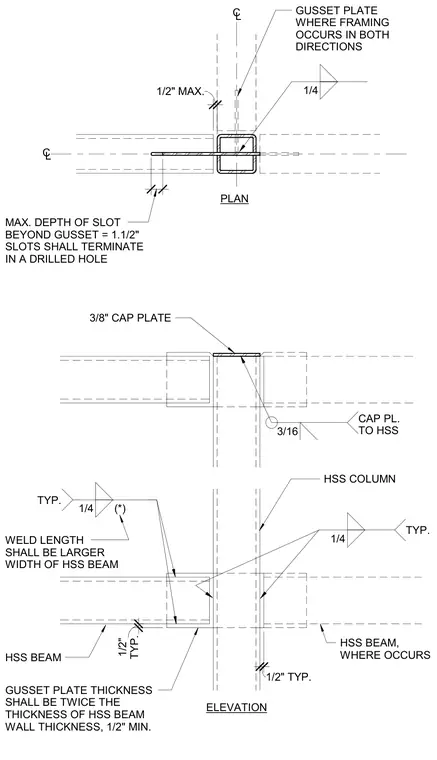

ELEVATION CAP PL. TO HSS PLAN WELD LENGTH SHALL BE LARGER WIDTH OF HSS BEAM HSS BEAM GUSSET PLATE THICKNESS SHALL BE TWICE THE THICKNESS OF HSS BEAM WALL THICKNESS, 1/2" MIN. HSS BEAM, WHERE OCCURS HSS COLUMN 3/8" CAP PLATE MAX. DEPTH OF SLOT BEYOND GUSSET = 1.1/2" SLOTS SHALL TERMINATE IN A DRILLED HOLE GUSSET PLATE WHERE FRAMING OCCURS IN BOTH DIRECTIONS 1/4 (*) TYP. 1/4 TYP. 3/16 C L C L 1/4 1/2" MAX. 1/2" TYP. TYP. 1/2"
