An eight-inch slab-on-grade is reinforced with Grade 60 number 5 reinforcing bars placed at twelve inches on center each way. The slab is framed by grade beams designated as GB5 and GB6, with columns C16 located at the intersections. A reference note directs to detail 3 on sheet S-501.

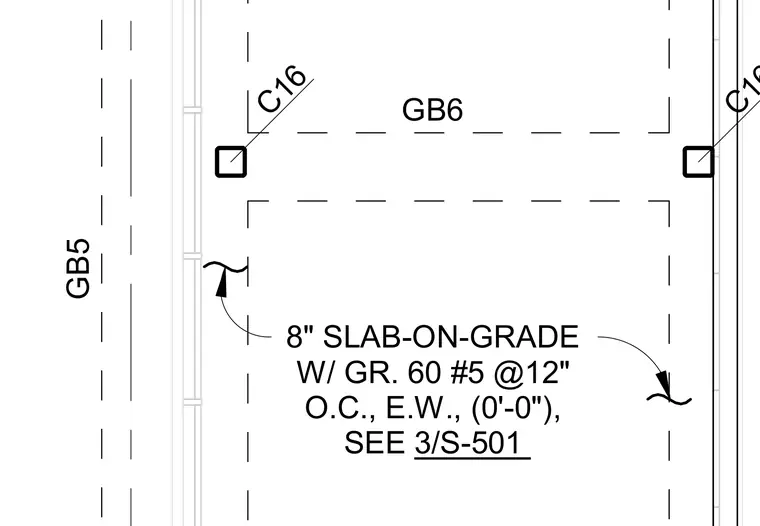

GB5 C16 C16 8" SLAB-ON-GRADE W/ GR. 60 #5 @12" O.C., E.W., (0'-0"), SEE 3/S-501 GB6
