Yard Column Base Plate Plan Layout

Materials

Steel

Elements

Columns Connections / Plates

Connections

Base Plate / Anchorage

About this detail

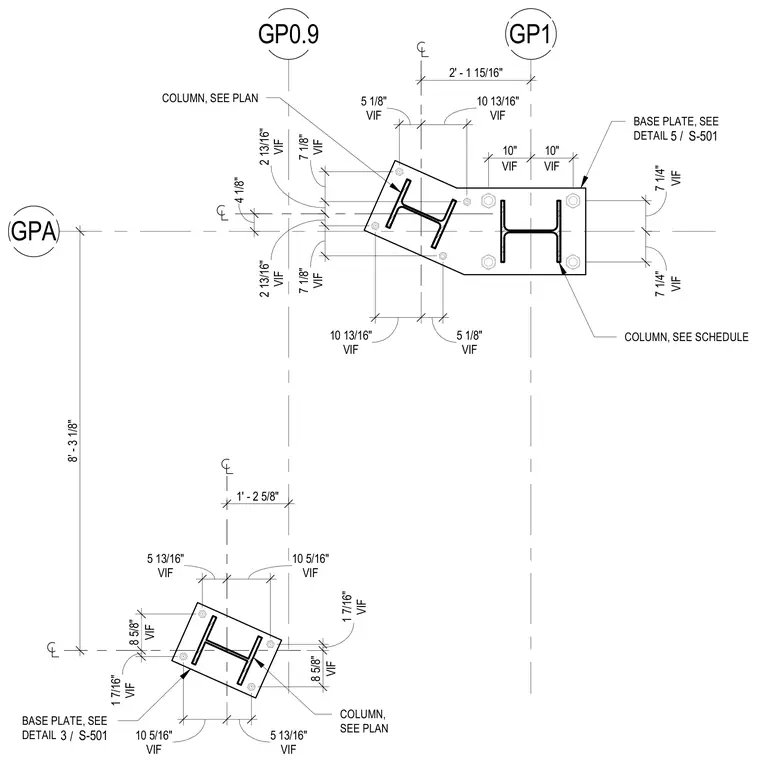

This structural plan detail shows column base plate layouts and anchor bolt dimensions referenced to column grid lines GPA, GP0.9, and GP1. The drawing indicates column positions, base plate dimensions, and specific detail references including detail 3 and 5 on sheet S-501, with dimensions marked as verify in field where required.
