Structural · S-8Y5FV

Gravity Column Baseplate

Materials

Concrete Steel Masonry / CMU

Elements

Columns Foundations / Footings Anchors / Embeds

Connections

Base Plate / Anchorage HSS Connection Bolted Connection

About this detail

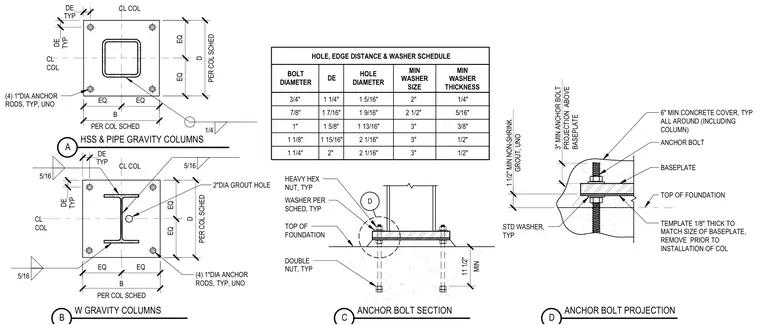

Gravity column baseplate connections for hollow structural sections, pipe columns, and wide flange columns are supported on concrete foundations. The baseplates are secured with four one-inch diameter anchor rods featuring double nuts and standard washers per schedule. A two-inch diameter grout hole is provided, and a one-and-a-half-inch minimum non-shrink grout layer sits beneath the baseplate above the top of the foundation. A temporary one-eighth inch thick template matching the baseplate size is included for installation alignment and removed prior to column erection. The assembly maintains a three-inch minimum anchor bolt projection above the baseplate and a six-inch minimum concrete cover all around.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
