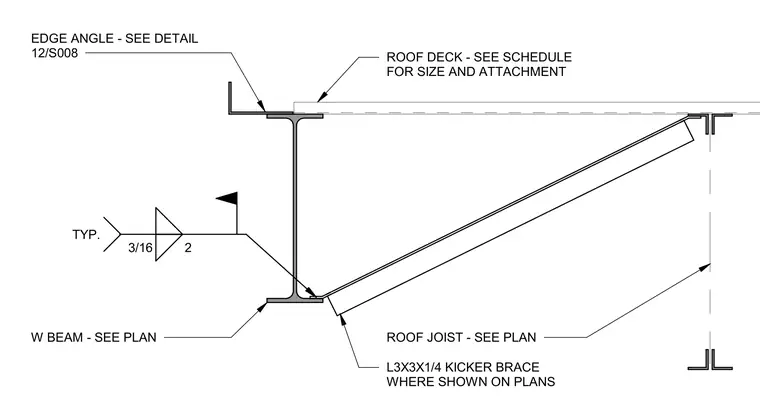

This assembly features a L3x3x1/4 angle kicker brace providing lateral support to a roof joist. The kicker brace is welded to the web of a wide-flange beam with a 3/16-inch fillet weld, two inches long, applied typically. The roof deck is supported by the top flange of the beam, while an edge angle is positioned at the beam perimeter. All member sizes and specific deck attachment requirements are referenced to the structural plans and schedules.
