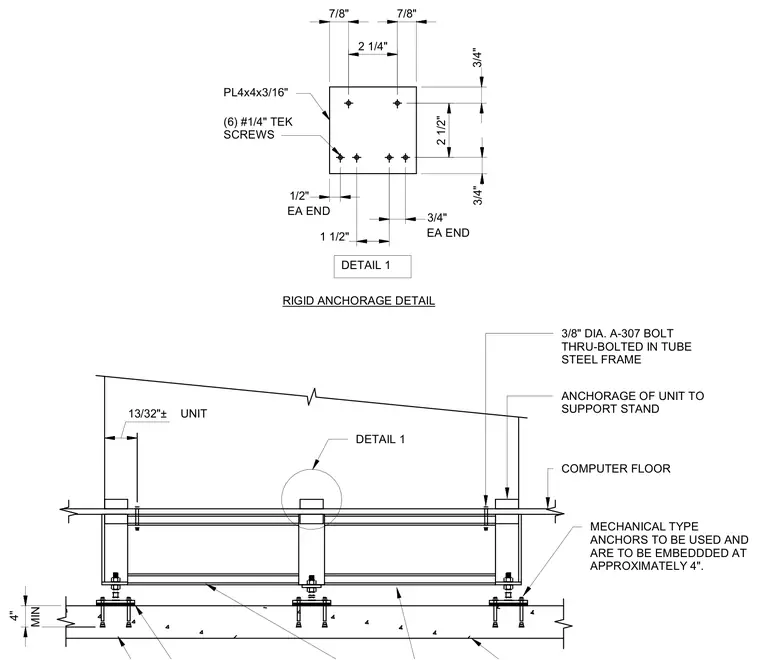

A computer room air conditioning unit mounts to a tubular steel support stand above a raised computer floor and concrete slab. The unit rests on a support frame secured with three-eighths-inch diameter ASTM A-307 through-bolts. Mechanical type anchors are embedded approximately four inches into the concrete slab below. A four-by-four-by-three-sixteenths-inch plate is fastened with six quarter-inch Tek screws at each end.
RIGID ANCHORAGE DETAIL 13/32"± 4" 7/8" 2 1/4" 7/8" 3/4" 2 1/2" 3/4" 1/2" 3/4" 1 1/2" UNIT DETAIL 1 (6) #1/4" TEK SCREWS MIN PL4x4x3/16" EA END MECHANICAL TYPE ANCHORS TO BE USED AND ARE TO BE EMBEDDDED AT APPROXIMATELY 4". COMPUTER FLOOR ANCHORAGE OF UNIT TO SUPPORT STAND 3/8" DIA. A-307 BOLT THRU-BOLTED IN TUBE STEEL FRAME DETAIL 1 EA END
