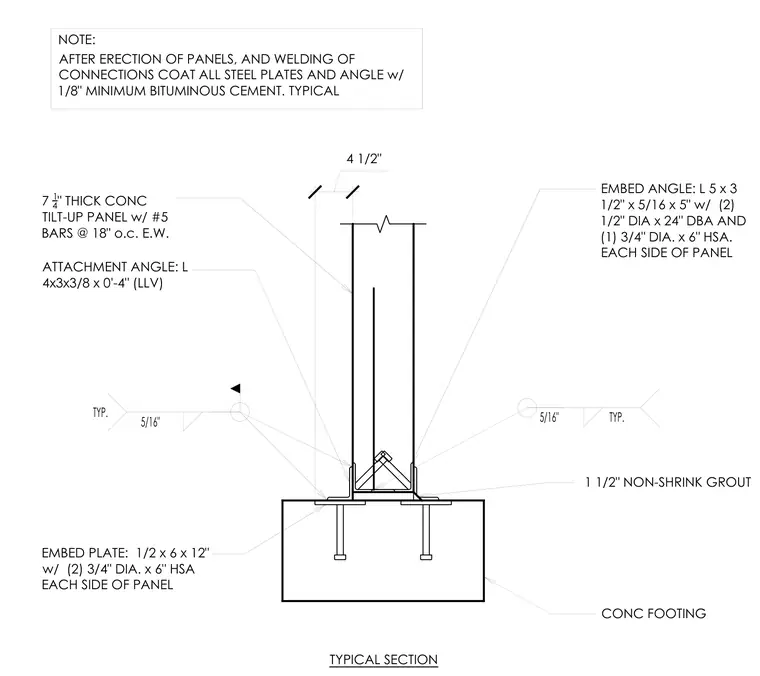

A structural connection for a seven and one-quarter inch thick concrete tilt-up panel reinforced with number five bars at eighteen inches on center each way bearing on a concrete footing. The panel base is supported by an embed angle measuring five by three and one-half by five-sixteenths by five inches equipped with two one-half-inch diameter by twenty-four-inch deformed bar anchors and one three-quarter-inch diameter by six-inch headed stud anchor on each side of the panel. An attachment angle measuring four by three by three-eighths by four inches long connects to a half-inch by six by twelve-inch embed plate with two three-quarter-inch diameter by six-inch headed stud anchors on each side using five-sixteenth-inch fillet welds. A one-and-one-half-inch layer of non-shrink grout is placed beneath the panel base. After panel erection and connection welding, all steel plates and angles are coated with a one-eighth-inch minimum layer of bituminous cement.
AFTER ERECTION OF PANELS, AND WELDING OF CONNECTIONS COAT ALL STEEL PLATES AND ANGLE w/ 1/8" MINIMUM BITUMINOUS CEMENT. TYPICAL EMBED PLATE: 1/2 x 6 x 12" w/ (2) 3/4" DIA. x 6" HSA EACH SIDE OF PANEL TYP. 5/16" ATTACHMENT ANGLE: L 4x3x3/8 x 0'-4" (LLV) 4 1/2" TYP. 5/16" CONC FOOTING 1 1/2" NON-SHRINK GROUT EMBED ANGLE: L 5 x 3 1/2" x 5/16 x 5" w/ (2) 1/2" DIA x 24" DBA AND (1) 3/4" DIA. x 6" HSA. EACH SIDE OF PANEL NOTE: TYPICAL SECTION 7 1 4 " THICK CONC TILT-UP PANEL w/ #5 BARS @ 18" o.c. E.W.
