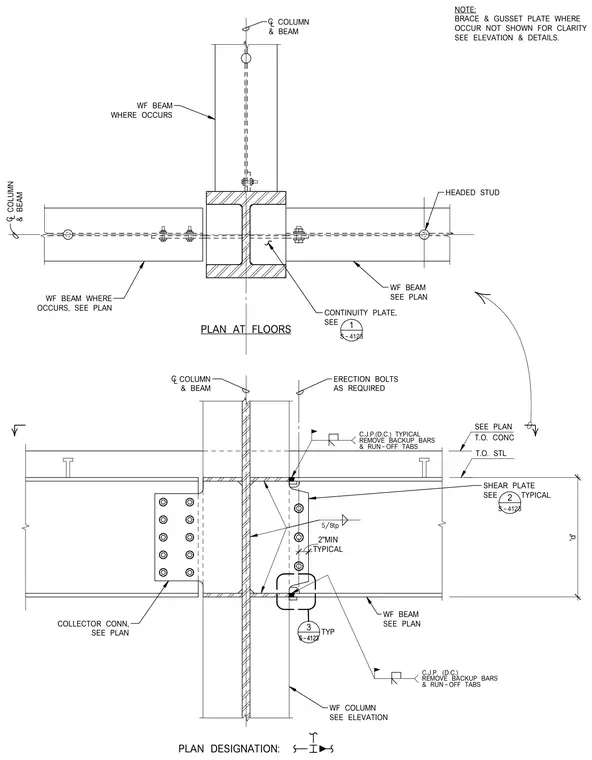

This structural steel connection features wide-flange beams framing into a wide-flange column with a one-sided moment configuration. The beam flanges connect to the column via complete-joint-penetration welds with backup bars and run-off tabs removed, while the web connects through a bolted shear plate. Continuity plates are provided at the column web aligned with the beam flanges. Erection bolts are included as required for field assembly, and headed studs are welded to the top flange for composite action with the concrete floor slab.
PLAN AT FLOORS HEADED STUD WF BEAM SEE PLAN COLUMN & BEAM C L WF BEAM WHERE OCCURS COLUMN & BEAM C L CONTINUITY PLATE, SEE 'd' TYPICAL 2"MIN ERECTION BOLTS AS REQUIRED COLUMN & BEAM C L SEE PLAN T.O. CONC T.O. STL SHEAR PLATE SEE TYPICAL WF BEAM SEE PLAN WF COLUMN SEE ELEVATION TYP 5/8tp S-4123 3 REMOVE BACKUP BARS C.J.P. (D.C.) & RUN-OFF TABS REMOVE BACKUP BARS C.J.P.(D.C.) TYPICAL & RUN-OFF TABS S-4123 1 S-4123 2 NOTE: BRACE & GUSSET PLATE WHERE OCCUR NOT SHOWN FOR CLARITY SEE ELEVATION & DETAILS. WF BEAM WHERE OCCURS, SEE PLAN PLAN DESIGNATION: COLLECTOR CONN, SEE PLAN
