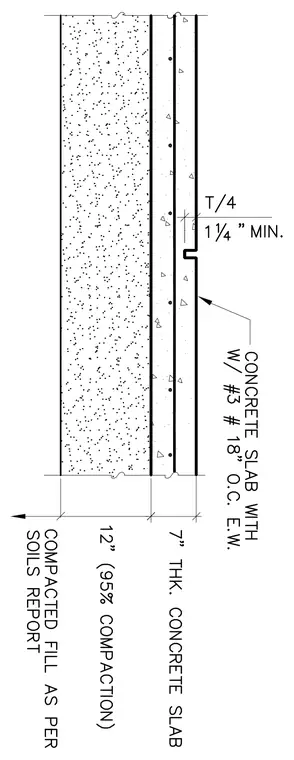

A seven-inch thick concrete slab reinforced with number three reinforcing bars at eighteen inches on center each way comprises this assembly. A control joint is scored into the top surface of the slab at a depth of T over four with a one-and-a-quarter inch minimum depth. The concrete slab rests upon a twelve-inch compacted fill layer compacted to ninety-five percent per the soils report.
