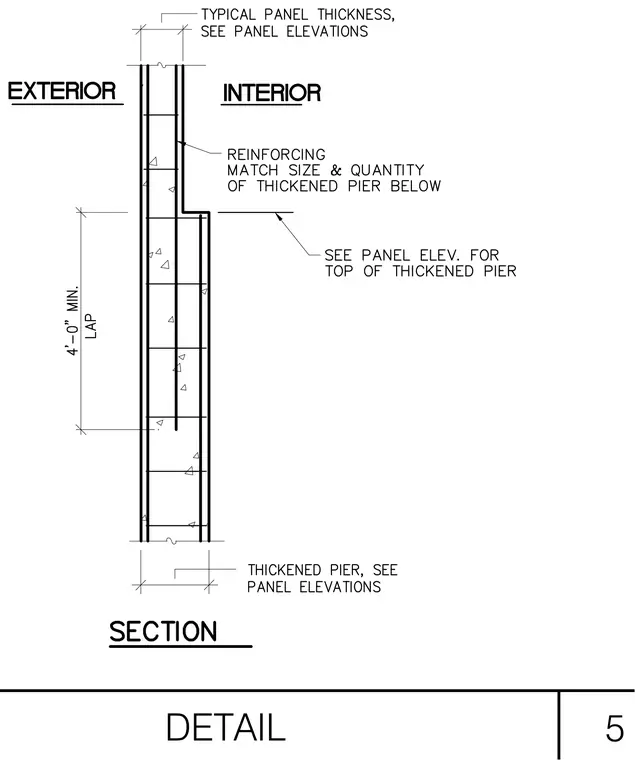

A reinforced concrete wall panel transitions to a thickened pier below with vertical reinforcing bars lapped four feet zero inches minimum. The wall thickness is sized per panel elevations. Vertical reinforcing matches the size and quantity of the thickened pier below.
