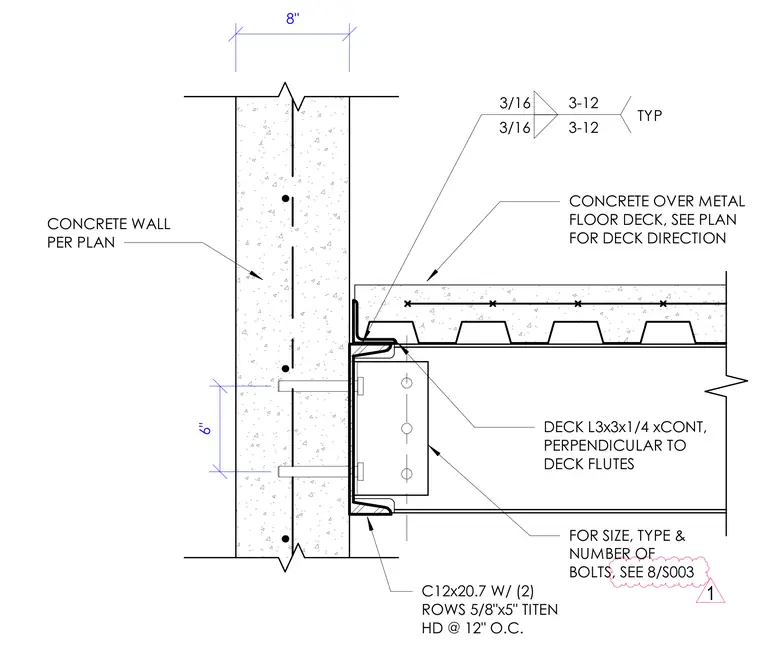

A C12x20.7 channel ledger is anchored to the concrete wall with two rows of five-eighths-inch by five-inch Titen HD anchors spaced at twelve inches on center. A continuous L3x3x1/4 angle runs perpendicular to the deck flutes to support the concrete over metal floor deck. Fillet welds secure the steel assembly typical to the channel profile.
C12x20.7 W/ (2) ROWS 5/8"x5" TITEN HD @ 12" O.C. CONCRETE WALL PER PLAN 8" 6" DECK L3x3x1/4 xCONT, PERPENDICULAR TO DECK FLUTES 3/16 3-12 3/16 3-12 TYP CONCRETE OVER METAL FLOOR DECK, SEE PLAN FOR DECK DIRECTION FOR SIZE, TYPE & NUMBER OF BOLTS, SEE 8/S003 1
