Structural · S-8XJNV

Wide Flange Beam to Strong Way Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection

About this detail

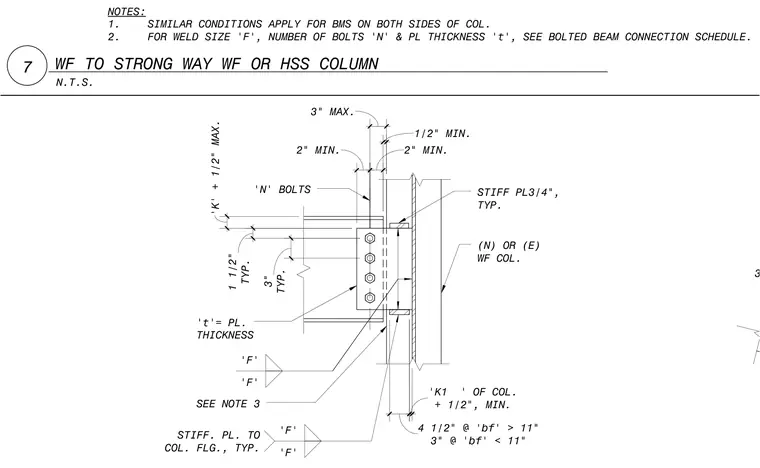

A bolted beam-to-column connection frames a wide-flange beam into the strong axis of a new or existing wide-flange or hollow structural section column. The connection uses three-quarter-inch thick typical stiffener plates welded to the column flange with specified fillet welds. A bolted shear tab or connection plate, sized per the bolted beam connection schedule, connects the beam web with a designated number of bolts. Dimensional tolerances and placement requirements include minimum clearances from the column k-distance and maximum spacing limits relative to the column flange width.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
