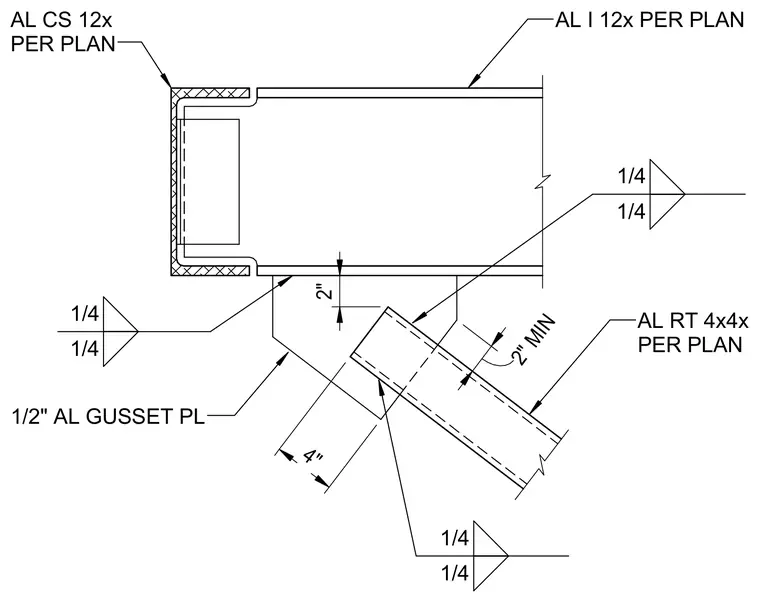

An aluminum rectangular tube connects to a one-half-inch aluminum gusset plate welded with quarter-inch fillet welds. The gusset plate ties into an aluminum I-section and an aluminum channel section sized per plan. Fillet welds secure the gusset plate to the structural members with specified clearances and minimum distances.
AL RT 4x4x PER PLAN 1/4 1/4 1/4 1/4 1/4 1/4 1/2" AL GUSSET PL 2" AL CS 12x PER PLAN 4" 2" MIN AL I 12x PER PLAN
