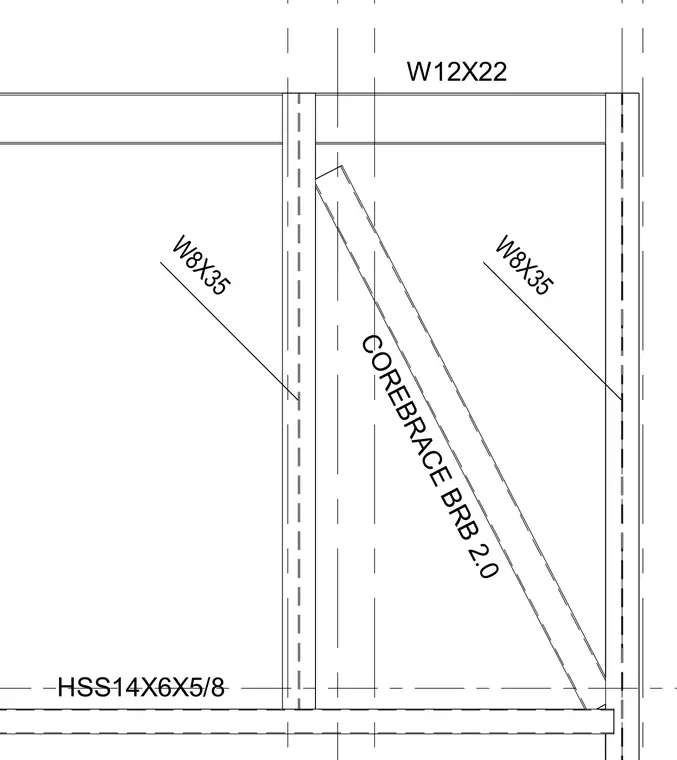

This structural connection details a CoreBrace buckling-restrained brace positioned within a steel frame. The assembly incorporates a W12x22 beam at the top and W8x35 structural steel shapes serving as vertical members, along with an HSS14x6x5/8 hollow structural section.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
