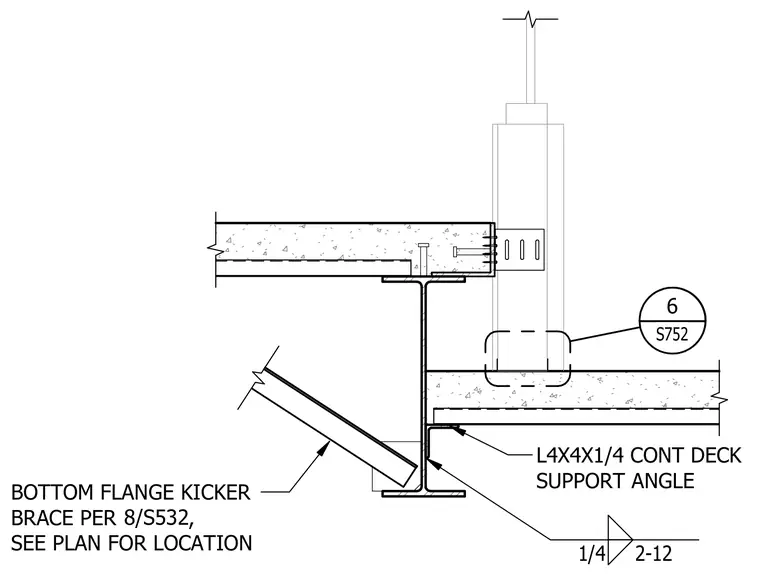

A structural steel beam supports a concrete deck assembly with a stepped patio slab edge. A continuous L4x4x1/4 deck support angle connects to the beam web with a one-quarter-inch fillet weld spaced at two inches on center. A bottom flange kicker brace connects to the underside of the beam per sheet 8/S532, with location determined per plan.
____ 6 S752 1/4 2-12 BOTTOM FLANGE KICKER BRACE PER , SEE PLAN FOR LOCATION 8/S532 L4X4X1/4 CONT DECK SUPPORT ANGLE
