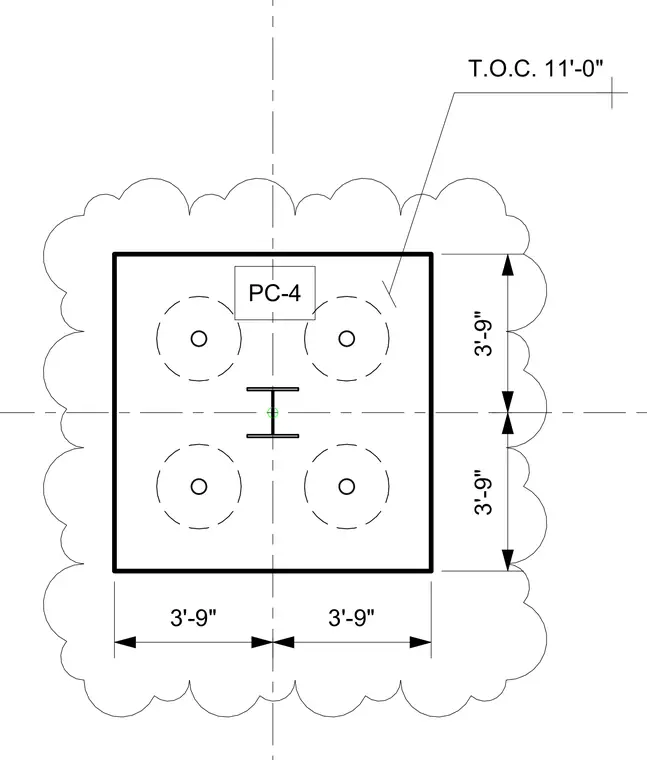

A square concrete pier supports a central steel column flanked by four anchor bolts arranged symmetrically. Symmetrical dimensions of three feet nine inches space the anchor bolts and pier boundaries from the column centerlines. A top of concrete elevation marker is set at eleven feet zero inches. The pier is designated as PC-4.
3'-9" 3'-9" PC-4 3'-9" 3'-9" T.O.C. 11'-0"
