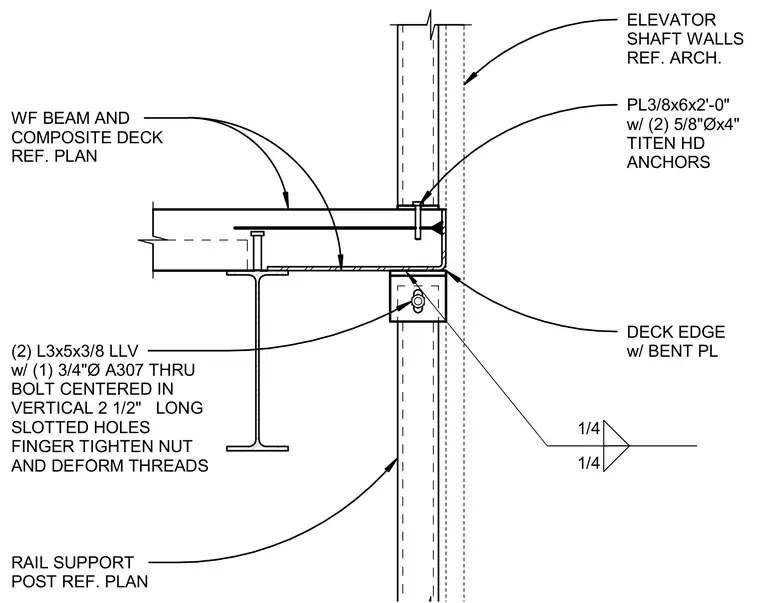

A wide flange beam supports a composite deck assembly that terminates at an elevator shaft wall. A three-eighths by six-inch by two-foot plate anchors into the concrete slab using two five-eighths-inch diameter by four-inch Titen HD anchors. Two angles sized three by five by three-eighths inches connect via a single three-quarter-inch diameter A307 through bolt centered in vertical two-and-a-half-inch long slotted holes. Nuts are finger-tightened with threads deformed to allow vertical movement. A bent plate finishes the deck edge.
WF BEAM AND COMPOSITE DECK REF. PLAN RAIL SUPPORT POST REF. PLAN ELEVATOR SHAFT WALLS REF. ARCH. PL3/8x6x2'-0" w/ (2) 5/8"Øx4" TITEN HD ANCHORS (2) L3x5x3/8 LLV w/ (1) 3/4"Ø A307 THRU BOLT CENTERED IN VERTICAL 2 1/2" LONG SLOTTED HOLES FINGER TIGHTEN NUT AND DEFORM THREADS DECK EDGE w/ BENT PL 1/4 1/4
