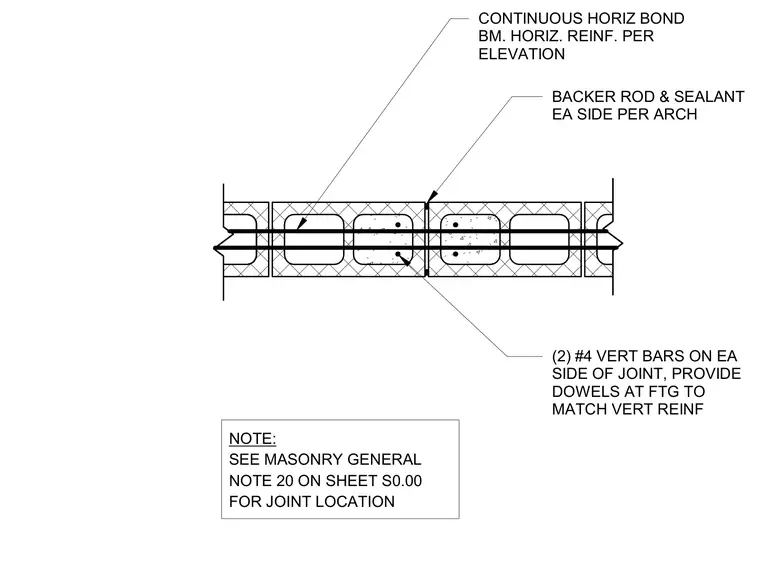

A vertical control joint in a concrete masonry unit wall is sealed with backer rod and sealant on each side per architectural requirements. Two number four vertical reinforcing bars are placed on each side of the joint, with matching dowels provided at the footing. A continuous horizontal bond beam crosses the assembly with horizontal reinforcement sized per elevation.
BACKER ROD & SEALANT EA SIDE PER ARCH (2) #4 VERT BARS ON EA SIDE OF JOINT, PROVIDE DOWELS AT FTG TO MATCH VERT REINF CONTINUOUS HORIZ BOND BM. HORIZ. REINF. PER ELEVATION NOTE: SEE MASONRY GENERAL NOTE 20 ON SHEET S0.00 FOR JOINT LOCATION
