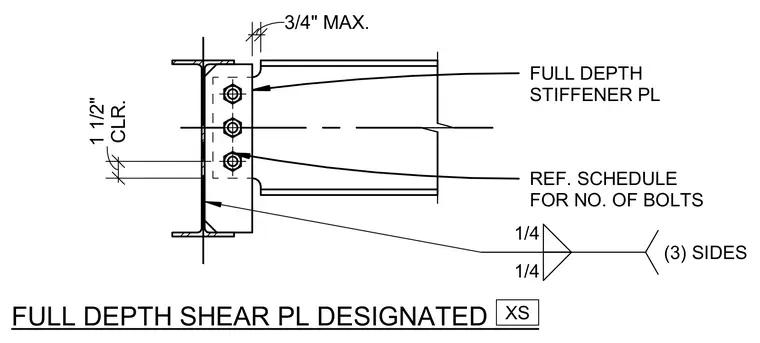

A full depth shear plate connects the supported steel beam web to the supporting member web, supplemented by a full depth stiffener plate welded on three sides with one-quarter inch fillet welds. Three bolts secure the beam web to the shear plate, maintaining a one and one-half inch clearance and a three-quarter inch maximum gap. The number of bolts is determined per the structural schedule. The stiffener plate is designated extra strong.
FULL DEPTH STIFFENER PL FULL DEPTH SHEAR PL DESIGNATED XS 1/4 1/4 (3) SIDES CLR. 1 1/2" 3/4" MAX. REF. SCHEDULE FOR NO. OF BOLTS
